Philips EBS 114 230 SH UV Lamp Ballast/Choke (Qty. 10)
Philips EBS 114 230 SH UV Lamp Ballast/Choke (Qty. 10)
Philips EBS 114 230 SH UV Lamp Ballast/Choke (Qty. 10)

Philips EBS 114 230 SH UV Lamp Ballast/Choke (Qty. 10)

Regular price Rs. 1,800.00

In Stock. Ships within 5 business days

Suitable for single UV lamp of:

  • TUV 4W
  • TUV 6W
  • TUV 8W
  • TUV 11W

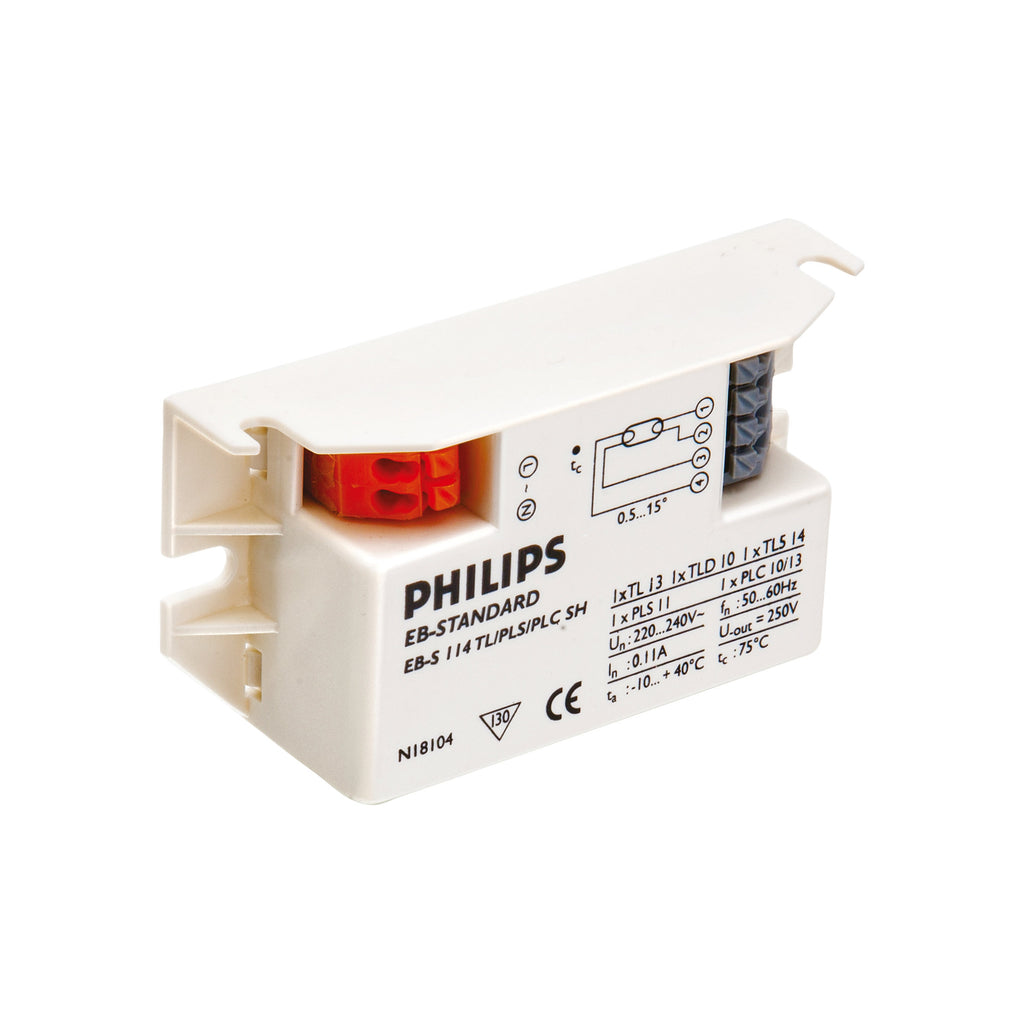

Micropower Electronic ballast for TL/PL-S/- T/-C lamps - EBS 114 230 SH

Compact, lightweight, high-frequency electronic ballast designed for TL (6-18 W) and compact fluorescent PL (7-24 W) lamps.

Benefits

  • Optimum lamp lifetime compared with electromagnetic gear circuits is achieved in applications with long burning hours (IEC cycle)
  • Energy savings of more than 25% (at equal luminous flux) compared with electromagnetic gear
  • Enhanced design freedom thanks to compact form

Features

  • Warm start: (EBS 114 & EBS118) flicker-free start, ideal for lighting applications up to 25 W
  • Multi-lamp ballast: one ballast can be used to drive lamps of different types and wattages

General Information

  • Design Square Housing
  • Automatic Restart Yes

Operating and Electrical

  • Input Voltage 220 to 240 V
  • Input Frequency 50 to 60 Hz
  • Operating Frequency (Min) 42 kHz
  • Ignition Method Warm Start
  • Crestfactor (Max) 1.85
  • Power Factor 100% Load (Nom) 0.6
  • Ignition Time (Max) 1 s
  • Mains Voltage Performance (AC) 221-254V
  • Mains Voltage Safety (AC) 216-264V
  • Power Losses (Nom) 3.5 W

Wiring

  • Connector Type Input Terminals WAGO 251 universal connector  [ Suitable for both automatic wiring (ALF and ADS) and manual wiring]
  • Connector Type Output Terminals WAGO 251 universal connector  [ Suitable for both automatic wiring (ALF and ADS) and manual wiring]
  • Wire Striplength 9.0-10.0 mm
  • Input Terminal Cross Section 0.50-1.50 mm²
  • Output Terminal Cross Section 0.50-1.50 mm²

System characteristics

  • Rated Ballast-Lamp Power 14 W

Temperature

  • T-Ambient (Max) 40 °C
  • T-Ambient (Min) 0 °C
  • T-Storage (Max) 85 °C
  • T-Storage (Min) -40 °C
  • T-Case Maximum (Max) 75 °C
  • T-Ignition (Min) 0 °C
  • Emergency Operation
  • Battery Voltage Lamp Ignition 198-254 V
  • Battery Voltage Lamp Operation 176-254
  • Approval and Application
  • EMC Immunity Standard IEC 61547
  • Humidity Standard IEC 61347-2-3 clause 11
  • Hum And Noise Level Inaudible
  • Net Weight (Piece) 0.040 kg
