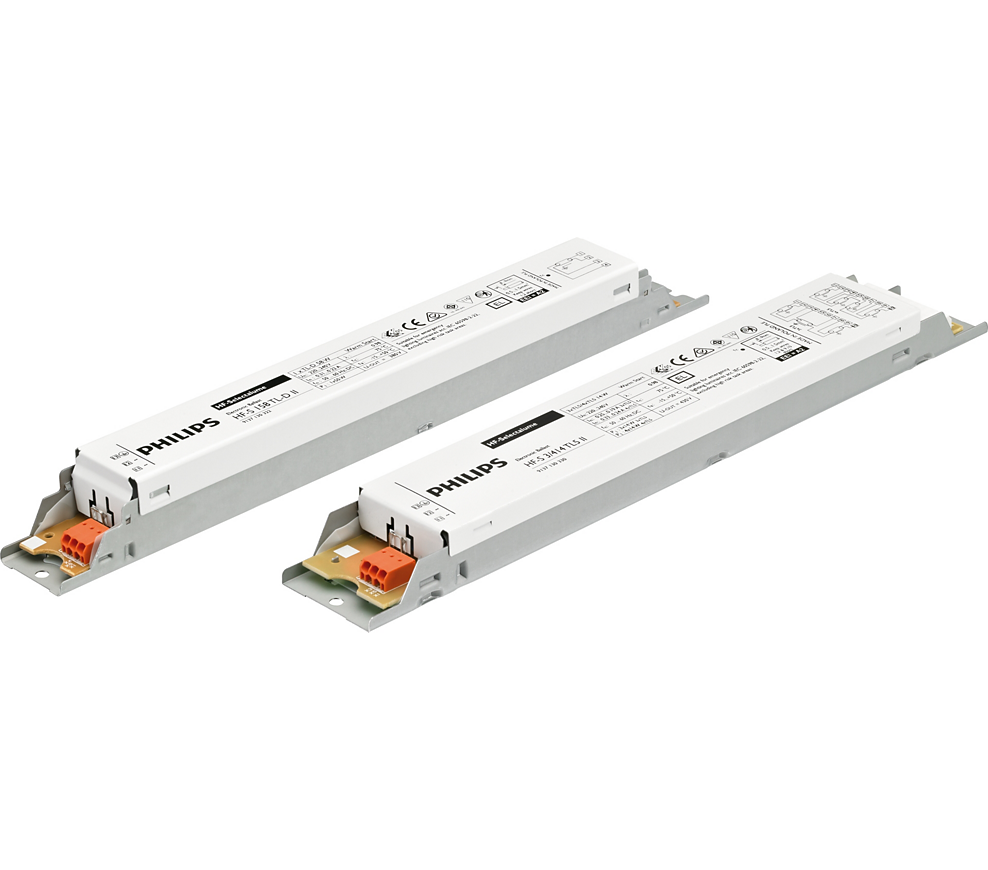

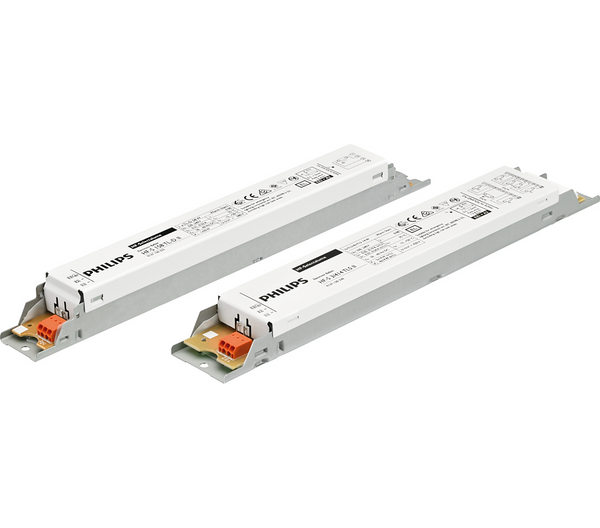

Philips HF-S 3/414 TL5 II 220-240V 50/60Hz UV Lamp Ballast/Choke (Qty. 2)
Philips HF-S 3/414 TL5 II 220-240V 50/60Hz UV Lamp Ballast/Choke (Qty. 2)
Philips HF-S 3/414 TL5 II 220-240V 50/60Hz UV Lamp Ballast/Choke (Qty. 2)
Philips HF-S 3/414 TL5 II 220-240V 50/60Hz UV Lamp Ballast/Choke (Qty. 2)

Philips HF-S 3/414 TL5 II 220-240V 50/60Hz UV Lamp Ballast/Choke (Qty. 2)

Rs. 1,700.00

In Stock. Ships within 5 business days

Suitable for 4 UV lamps of:

  • TUV 4W
  • TUV 6W
  • TUV 8W
  • TUV 11W

HF-Selectalume II for TL5 lamps - HF-S 3/414 TL5 II 220-240V 50/60Hz.

HF-Selectalume II TL5 is the most cost-effective, reliable and outstanding solution. These ballasts are part of an overall high-efficiency lighting system that may help you or your customers to achieve any international or local energy code you need to comply with. HF-Selectalume II TL5 ballasts are the ideal choice for a broad range of new construction and retrofit applications within the commercial sector, including general surface mounting or office lighting, parking garages, warehouses, waterproof and other applications.;The ballast is primarily designed for Indoor application. For outdoor application, the luminaire should be minimum ClassⅠand need to be sufficiently protected against water & dust. The installation should also be guard against any lightening surge or any other necessary electrical protection as deemed in such typical installation & application.

Benefits

Exceptional energy efficiency with striation-reduction technology in lighting systems at lower temperatures

Maximum reliability in system operation

Multi-power technology for precise operation of multiple lamp types of various wattages

Features

  • Highest CELMA Energy Efficiency Index A2 BAT
  • Complies with CE, ENEC, EL, CCC marks of conformity
  • Average nominal service lifetime over 85,000 hours (at Ta 50°C) with a failure rate ≤ 0.1 % per 1,000 hours)
  • Optimized lamp preheating for min. 50,000 On/Off switch operations without replacement of lamps

Applications

  • Suitable for DC operation and emergency lighting installations; full compliance with requirements for emergency lighting according to EN 61347-2-3 -annex J
  • Extended lamp life in frequent-switching applications, e.g. where occupancy sensors or motion detectors are used
  • For luminaires of protection class I and protection class II used in hispitals and industrial premises

General Information

  • Application Code II
  • Type Version mk1
  • Number of Products on MCB (16A Type B) (Nom) 28
  • Automatic Restart Yes

Operating and Electrical

  • Input Voltage 220 to 240 V
  • Input Frequency 50 to 60 Hz
  • Operating Frequency (Nom) 45 kHz
  • Crestfactor (Nom) 1.7
  • Power Factor 100% Load (Nom) 0.98
  • Preheat Time 1.6 s
  • Mains Voltage Performance (AC) 202-254V-8%-+6%
  • Mains Voltage Safety (AC) 198-264V-10%-+10%
  • Earth Leakage Current (Max) 0.5 mA
  • Inrush Current Width 0.35 ms
  • Ballast Factor (Nom) 1.13
  • Power Losses (Nom) 6.1/10.8 W
  • Inrush Current Peak (Max) 18 A

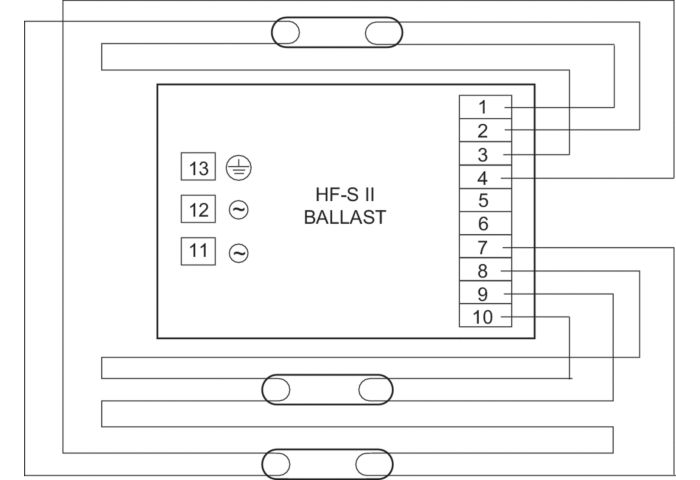

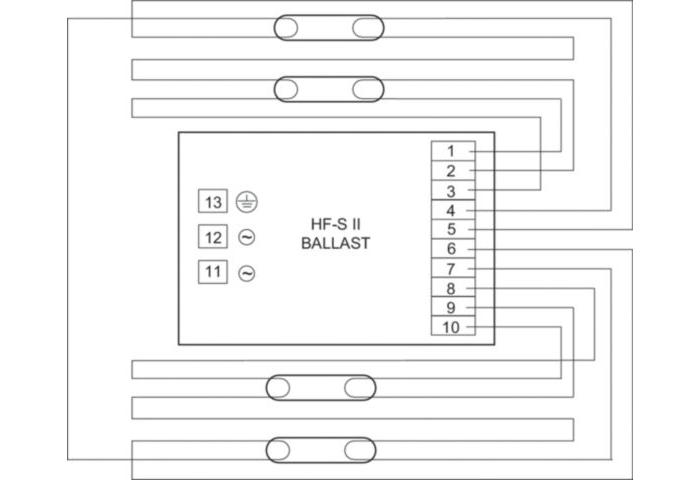

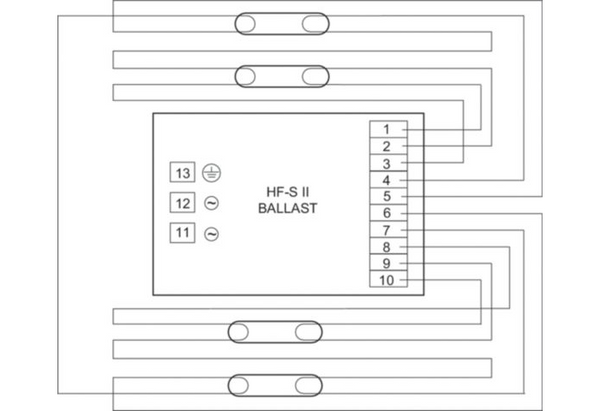

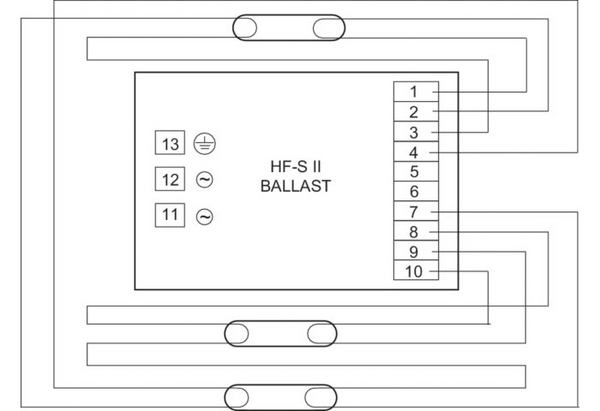

Wiring

  • Connector Type Input Terminals WAGO 744 connector
  • Cable Capacity Output Wires Mutual (Max) 120 pF
  • Connector Type Output Terminals WAGO 744 connector  [ Suitable for manual wiring]
  • Cable Length Hot Wiring 0.75 m
  • Wire Striplength 8.0-9.0 mm
  • Dual Fixture Master/Slave Possible, lamp wires 2m max. length  [ Master/Slave operation possible]
  • Input Terminal Cross Section 0.50-1.50 mm²
  • Output Terminal Cross Section 0.50-1.50 mm²
  • Cable Capacity Cold Output Wires - Earth (Max) 120 pF
  • Cable Capacity Hot Output Wires - Earth (Max) 120 pF
  • System characteristics
  • Rated Ballast-Lamp Power 14 W
  • Rated Lamp Power on TL5 14 W
  • System Power on TL5 51.0/61.4 W
  • Lamp Power on TL5 44.2/55.0 W
  • Power Loss on TL5 6.8/6.4 W

Temperature

  • T-Ambient (Max) 55 °C
  • T-Ambient (Min) -20 °C
  • T-Storage (Max) 80 °C
  • T-Storage (Min) -40 °C
  • T-Case Lifetime (Nom) 75 °C
  • T-Case Maximum (Max) 75 °C

Mechanical and Housing

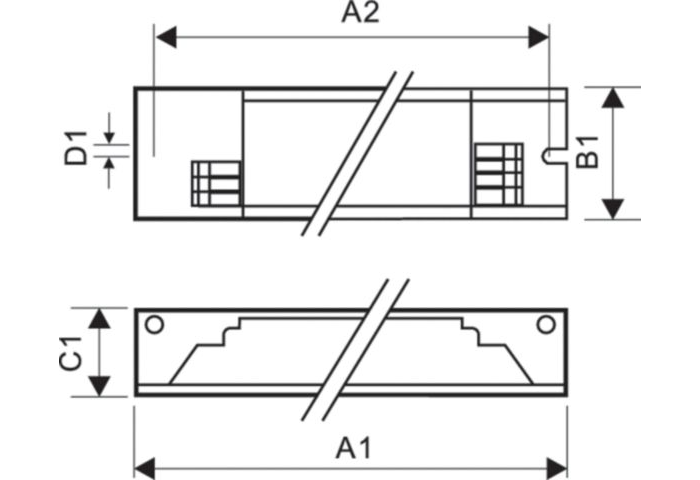

  • Housing L 280x39x21.5
  • Emergency Operation
  • Nominal Light Output After 60 Seconds 100% of EBLF
  • Normal Operating Voltage (DC) 220-240 V
  • Battery Voltage Guaranteed Operation 176-275 V
  • Battery Voltage Guaranteed Ignition 186-275 V
  • Emergency Ballast Lumen Factor (EBLF) (Nom) 100 %
  • Nominal Light Output After 5 Seconds 50% of EBLF

Approval and Application

  • Energy Efficiency Index A2/A2 BAT
  • IP Classification IP 20  [ Ingress Protection 20]
  • EMI 9 kHz ... 30 MHz EN55015
  • Vibration Standard IEC68-2-6 F c
  • Bumps Standard IEC 68-2-29 Eb (10G/16ms)
  • Approval Marks F-Marking CE marking ENEC certificate CCC certificate C-Tick certificate PSB certification TISI marking SIRIM approval CB Certificate CCC certificate VDE-EMV certificate
  • Hum And Noise Level < 30 dB(A)
  • Net Weight (Piece) 0.228 kg
