Philips EBS 114 230 SH UV Lamp Ballast/Choke (Qty. 10)

In Stock. Ships within 5 business days

Suitable for single UV lamp of:

• TUV 4W
• TUV 6W
• TUV 8W
• TUV 11W

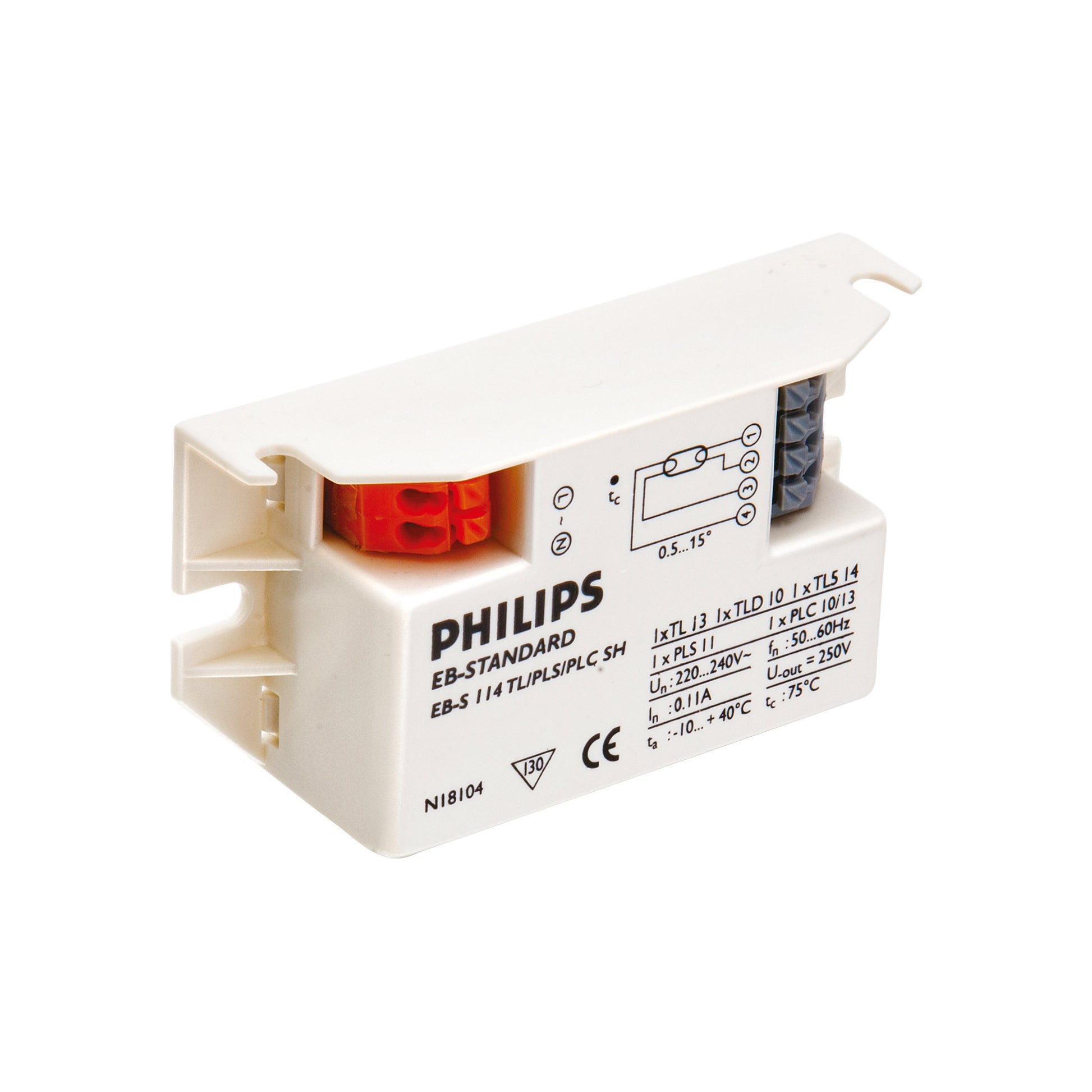

Micropower Electronic ballast for TL/PL-S/- T/-C lamps - EBS 114 230 SH

Compact, lightweight, high-frequency electronic ballast designed for TL (6-18 W) and compact fluorescent PL (7-24 W) lamps.

Benefits

• Optimum lamp lifetime compared with electromagnetic gear circuits is achieved in applications with long burning hours (IEC cycle)
• Energy savings of more than 25% (at equal luminous flux) compared with electromagnetic gear
• Enhanced design freedom thanks to compact form

Features

• Warm start: (EBS 114 & EBS118) flicker-free start, ideal for lighting applications up to 25 W
• Multi-lamp ballast: one ballast can be used to drive lamps of different types and wattages

General Information

• Design Square Housing
• Automatic Restart Yes

Operating and Electrical

• Input Voltage 220 to 240 V
• Input Frequency 50 to 60 Hz
• Operating Frequency (Min) 42 kHz
• Ignition Method Warm Start
• Crestfactor (Max) 1.85
• Power Factor 100% Load (Nom) 0.6
• Ignition Time (Max) 1 s
• Mains Voltage Performance (AC) 221-254V
• Mains Voltage Safety (AC) 216-264V
• Power Losses (Nom) 3.5 W

Wiring

• Connector Type Input Terminals WAGO 251 universal connector  [ Suitable for both automatic wiring (ALF and ADS) and manual wiring]
• Connector Type Output Terminals WAGO 251 universal connector  [ Suitable for both automatic wiring (ALF and ADS) and manual wiring]
• Wire Striplength 9.0-10.0 mm
• Input Terminal Cross Section 0.50-1.50 mm²
• Output Terminal Cross Section 0.50-1.50 mm²

System characteristics

• Rated Ballast-Lamp Power 14 W

Temperature

• T-Ambient (Max) 40 °C
• T-Ambient (Min) 0 °C
• T-Storage (Max) 85 °C
• T-Storage (Min) -40 °C
• T-Case Maximum (Max) 75 °C
• T-Ignition (Min) 0 °C
• Emergency Operation
• Battery Voltage Lamp Ignition 198-254 V
• Battery Voltage Lamp Operation 176-254
• Approval and Application
• EMC Immunity Standard IEC 61547
• Humidity Standard IEC 61347-2-3 clause 11
• Hum And Noise Level Inaudible
• Net Weight (Piece) 0.040 kg
