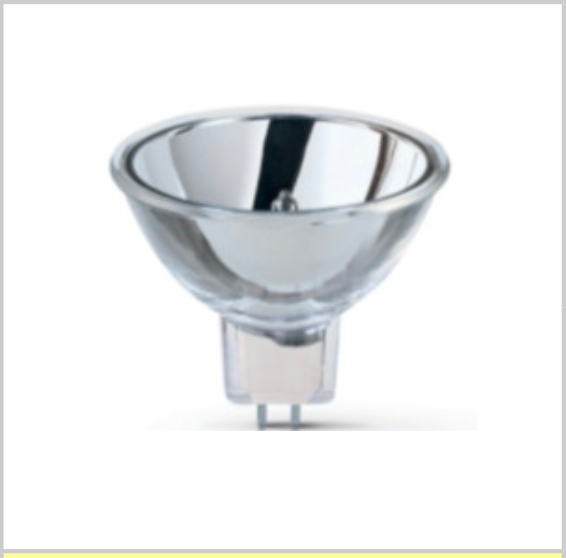

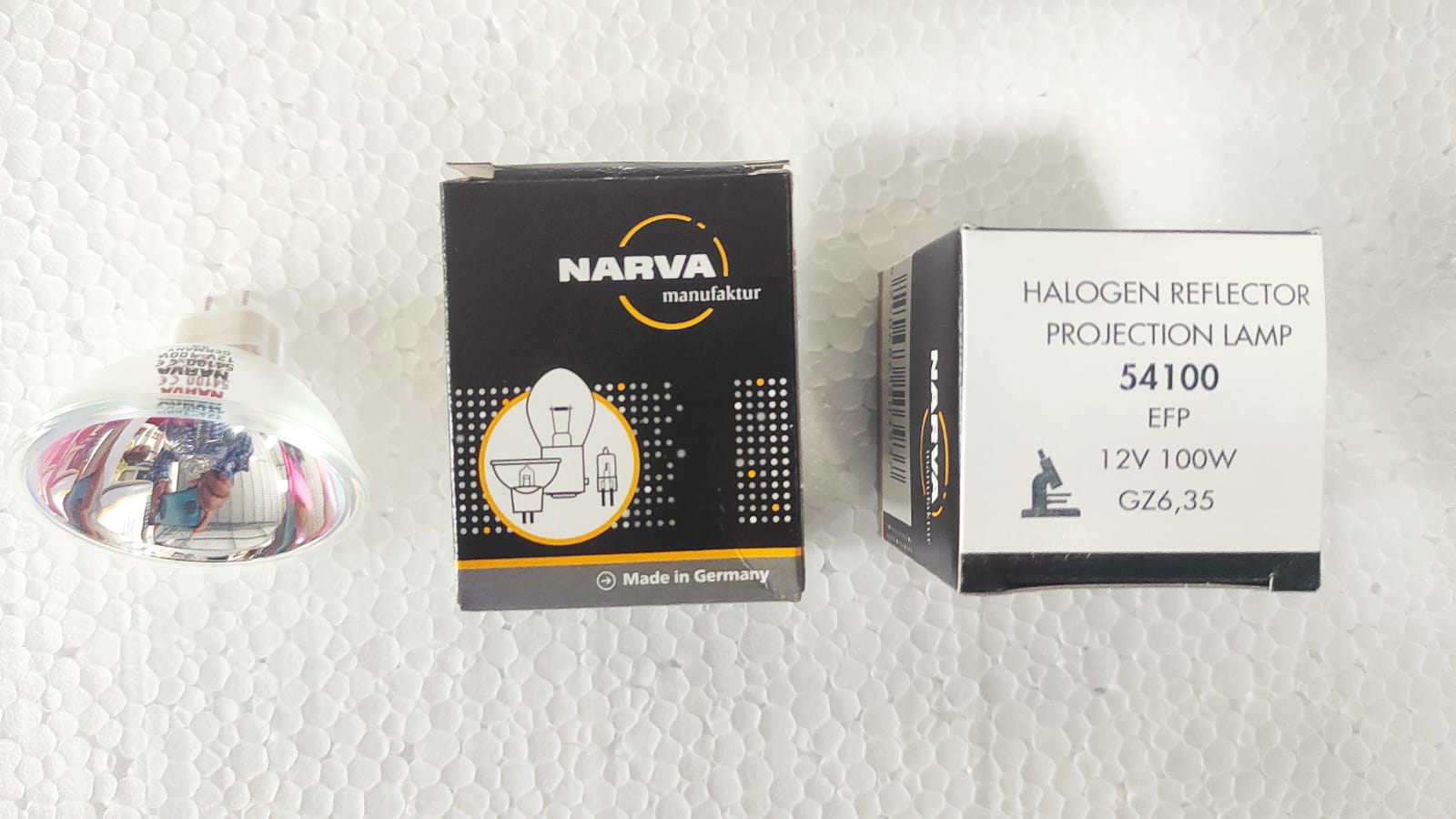

Narva 54100 12V 100W GZ6.35 Halogen Lamp (Qty.3)
In Stock. Ships within 5 business days.
Halogen Reflector Lamp
Features
Quartz Bulb, Pre-Focused (Filament), Dimmable
Application
Projection
Technical Details
|
ANSI Code |
EFP |
|
LIF Code |
- |
|
Rated Voltage (V) |
12 |
|
Wattage (W) |
100 |
|
Color Temperature (K) |
3400 |
|
Average Lifetime (h) |
50 |
|
Base |
GZ6,35 |
|
Reflector Finish |
smooth |
|
Operating Position |
S105 |
|
Max. permissible Tempera- tures (degree C)
|
350 900 |
|
Environmental Remark |
Product don’t contain lead or mercury |

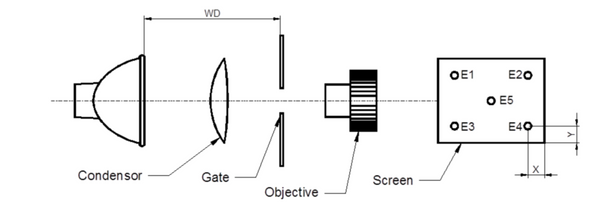

Projections
Technical Details
|
Working Distance WD (mm) |
32 |
|
Condensor f (mm) |
50 |
|
Gate (mm) |
5,2 x 3,9 |
|
Objective f (mm) |
11 |
|
Screen Size (mm) |
1200 x 900 |
|
Cell Position X/Y (mm) |
40/40 |
|
Screen Illumination on Center (Lx) |
300 min |
|
Screen Illumination on Corner (%) |
60 min. |
Special Lamps Made in Germany since 1948
Voslo-Narva is the worldwide leader in producing halogen lamps for microscopes, lamps for operating rooms and other surgical lighting.
