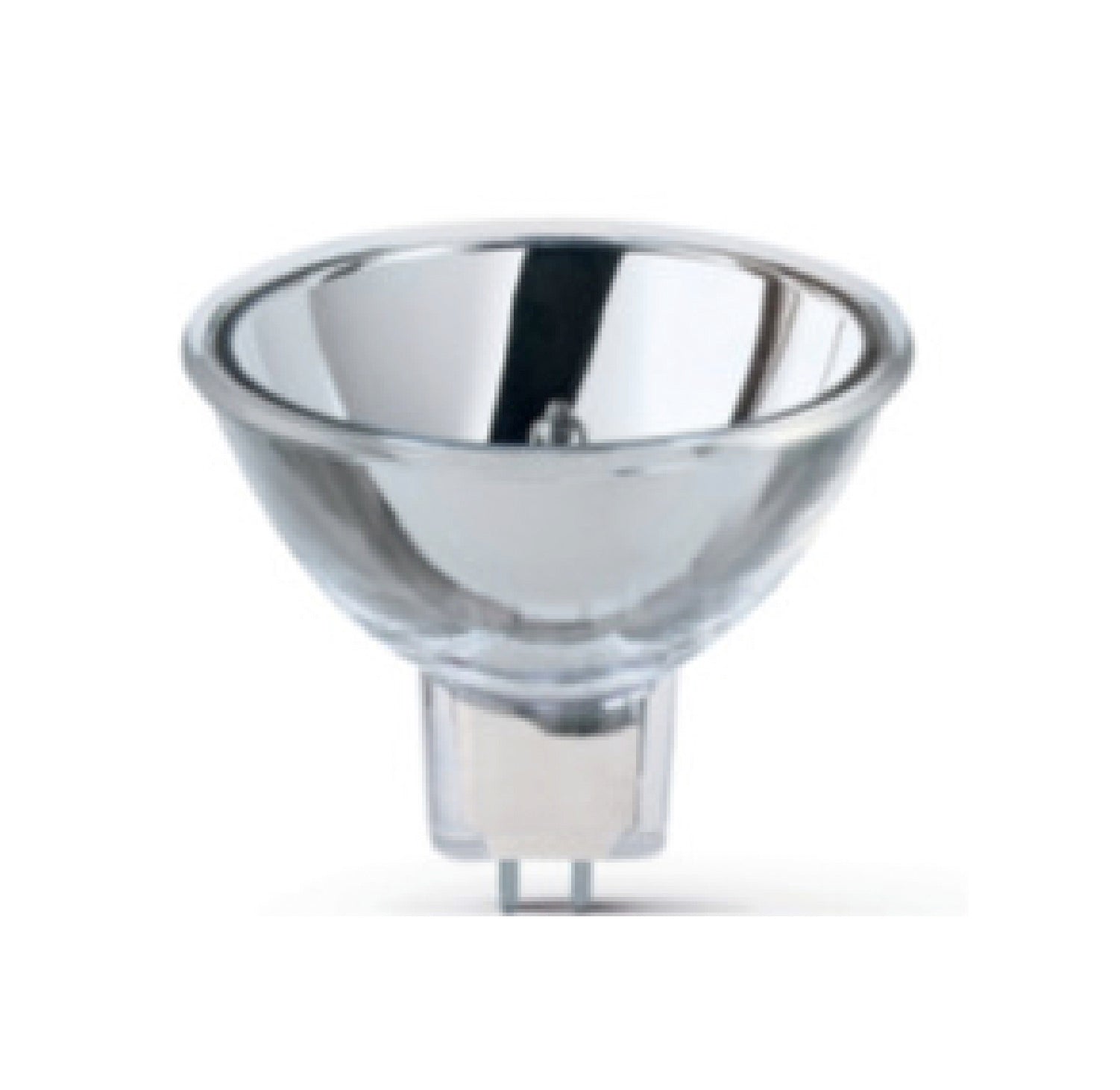

Narva 13.8V 50W GX5.3 EPZ/DJT 54030 Halogen Reflector Projection Lamp

Rs. 1,650.00

In Stock. Ships within 5 business days.

Narva 13.8V 50W GX5.3 EPZ/DJT 54030 Halogen Reflector Projection Lamp

Halogen lamps with reflectors guarantee a precisely focussed light at a pre-defined distance. The coating of the reflector directs the majority of the heat radiation away to the rear, thus protecting the illuminated object against the effects of heat. With their varying reflector diameters and cap shapes, these lamps can be used in a variety of different settings.

Features/Benefits

- Dichroic coating on the glass reflector

- Precise alignment of the halogen lamp to suit the optical system

- Various lighting characteristics

Application

- Projection

- Fibre optics

- Medical equipment

- Hardening of dental fillings

Specifications

Product Description Halogen reflector lamp
Features Quartz Bulb, Pre-Focused (Filament), Dimmable
Application Projection
ANSI Code EPZ/DJT
Rated Voltage (V) 13,8
Wattage (W) 50
Color Temperature (K) 3150
Average Lifetime (h) 1000
Base GX5,3
Reflector Finish smooth
Operating Position S105
Max. permissible Temperatures (degree C) • Pinch 350 • Bulb 900
Environmental Remark Product don’t contain lead or mercury and is conform with Directive 2011/65/EC ‘’Restriction of the use of certain hazardous substances in electrical and electronic equipment’’.

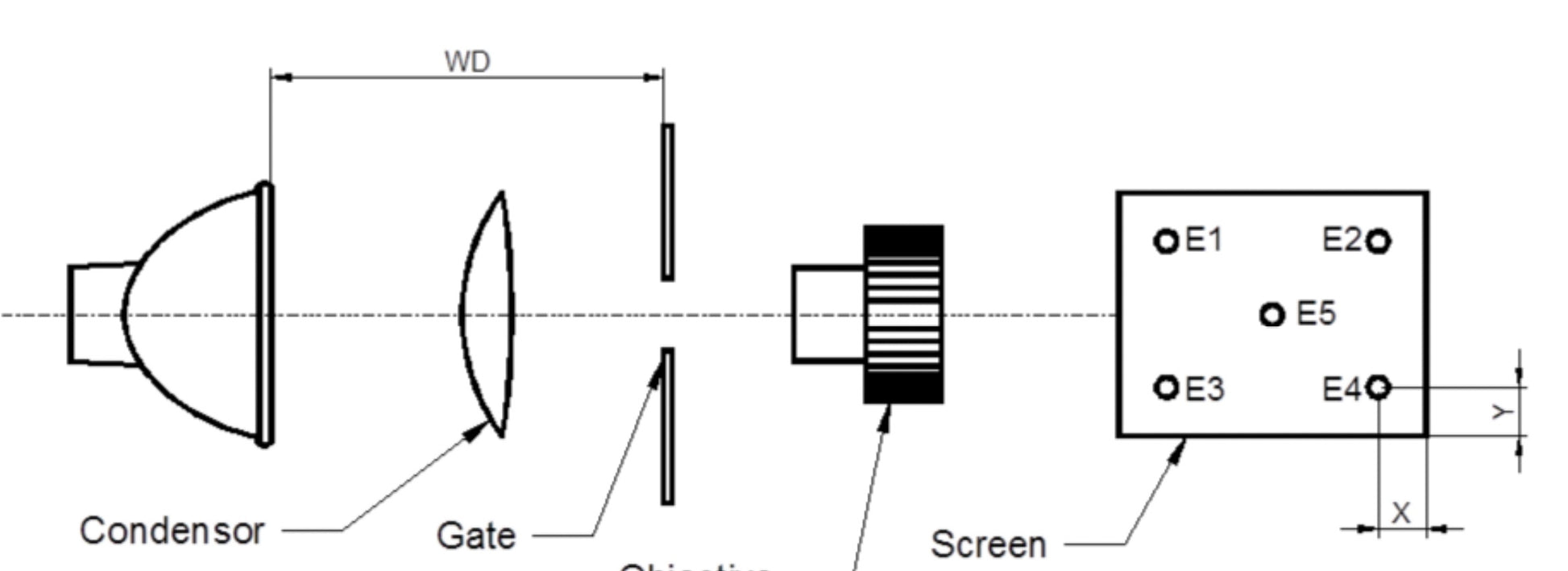

Working Distance WD (mm) 108
Condensor f (mm) 60
Gate (mm) 9,4 / round
Objective f (mm) 17
Screen Size (mm) 356 x 279
Cell Position X/Y (mm) 40/40
Screen Illumination on Center (Lx) 380 av. min. 320 min.
Screen illumination on Corner (%) 70 min.

GERMAN COMPANY – GERMAN QUALITY STANDARDS

Special Lamps Made in Germany since 1948

Voslo-Narva is the worldwide leader in producing halogen lamps for microscopes, lamps for operating rooms and other surgical lighting.
