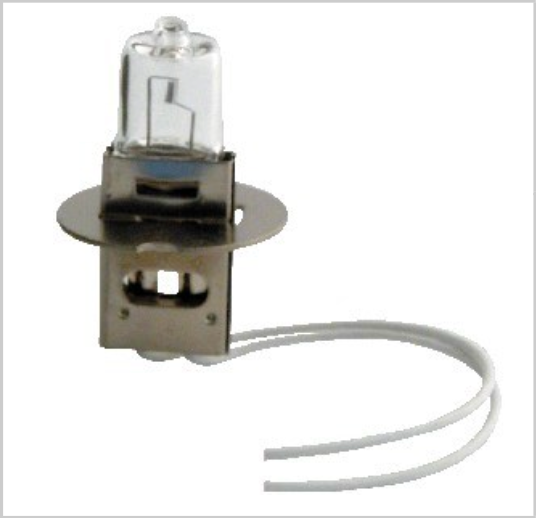

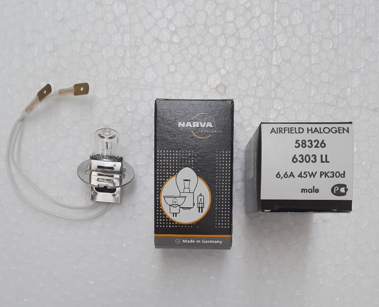

Narva 58326, 6303LL 6.6A 45W PK30d Airfield Lamps (Qty. 2)
In Stock. Ships within 5 business days.
Equivalent Osram P/N:
64317 C 45-10
64317 IRC-C 45-30
64318 Z/C 45-10
Airfield Halogen Prefocus
Features
High and constant lumen output, long lifetime, excellent optical adjustment, cement free prefocus base
Applications
- Approach and threshold lights,
- Runway and taxiway lights,
- Stopbar and touch-down zone light visual approach slope indicator systems (e.g. PAPI)
- Airport signs
|
Technical Details |
|
|
Rated current (A) |
6,6 |
|
Wattage (W) |
45 ± 10 % |
|
Luminous flux (lm) |
800 ± 10% |
|
Lumen maintenance |
min. 95 % after 1500 h |
|
Average lifetime (hours) |
2000 |
|
Base |
PK30d |
|
Cable connector |
flat male |
|

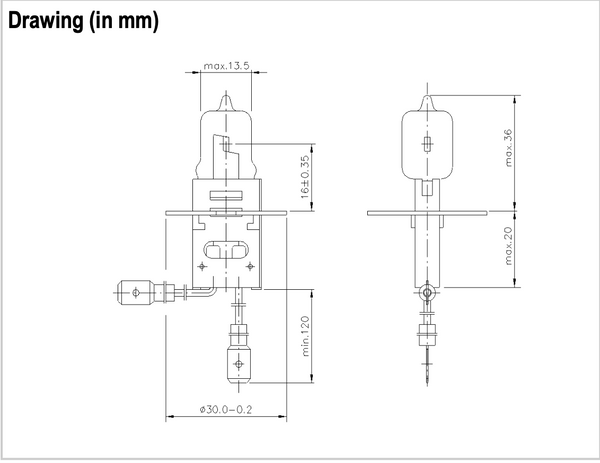

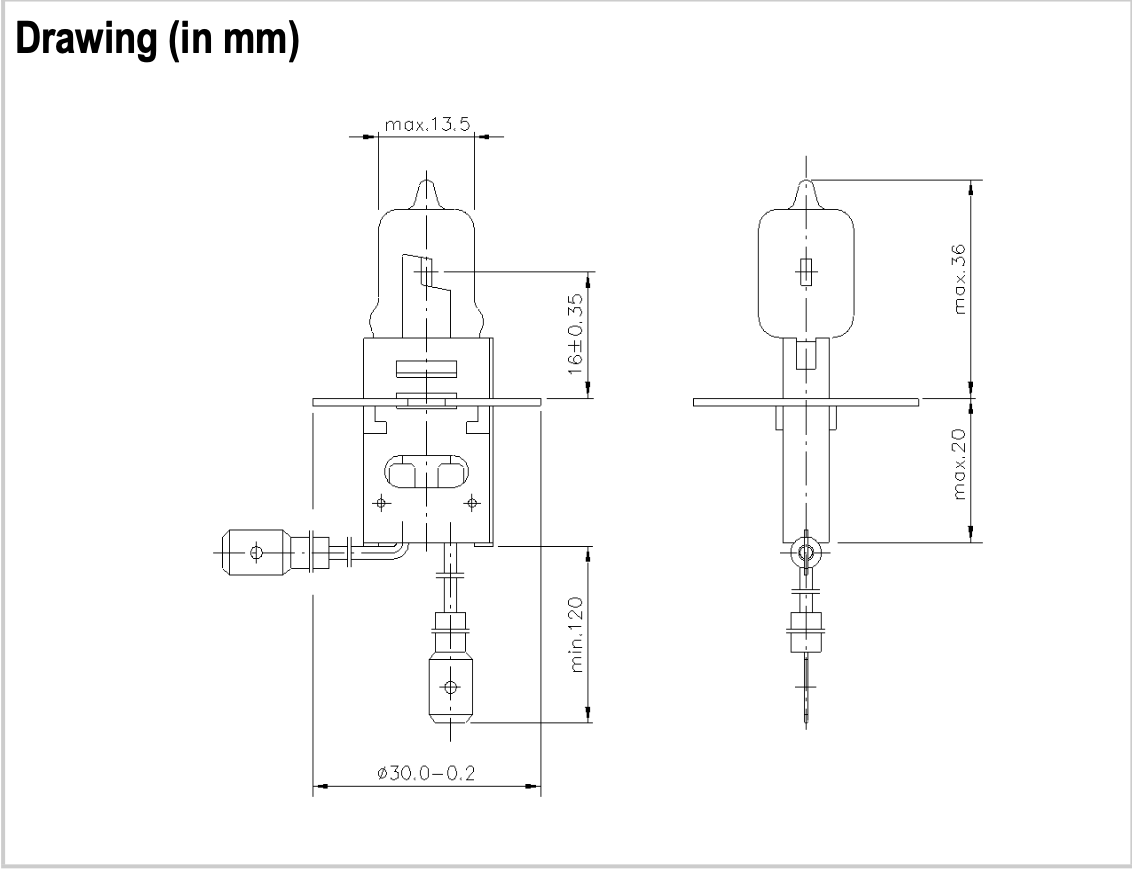

Cable length (mm) |
min. 120 |
|
Maximum Overall Length (mm) |
max. 56 |
|
Bulb Diameter (mm) |
max. 13,5 |
|
Light Center Length (mm) |
16,0 +/-0,35 |
|
Maximum allowed cable tem- perature (°C) |
250 |
|
Maximum allowed pinch tem- perature (°C) |
350 |
|
Filament Type |
C8 |
|
Burning Position |
S90 |
|
Chromaticity |
within white boundaries |
|
Packaging quantity |
100 pcs. |
|
Environmental remark |
Product don’t contain lead or mercury |
GERMAN COMPANY – GERMAN QUALITY STANDARDS
For more than 70 years, precision and quality in Halogen bulbs and lighting solutions, made by NARVA in Germany
In the field of airfield lighting, Vosla-Narva is one of the leading manufacturers worldwide. Our product range covers all AGL applications. From approach and threshold lights over taxiway and runway lights to obstruction lights, our NARVA lamps provide safety on the runway.
High reliability and long life expectancy are those characteristics of our Airfield Ground Lighting lamps which we take into account with our internal quality seal of “German Precision Lighting” – and which are highly valued by our repeat customers for decades.
Safety during takeoff and landing maneuver’s can only be assured by perfect illumination of airfield runways. Thus, regulatory requirement of FAA, ICAO and other international regulations are just the lower limit – our personal standard and ambition onto quality goes well beyond.
Our products also deliver value with their prolonged lifetime, which results in long exchange cycles and considerably lower maintenance costs.
