Philips Actinic BL TL-D 18W/10 1SL/25 (Qty. 8)
In Stock. Ships within 5 business days
Compatible/Right UV Lamp Ballast/Choke for superior UV lamp life is also available for this UV lamp
UV-compatible Lampholder to prevent premature failure of UV Lamp is also available for this UV lamp
UV Quartz Sleeve for safety is also available for this UV lamp

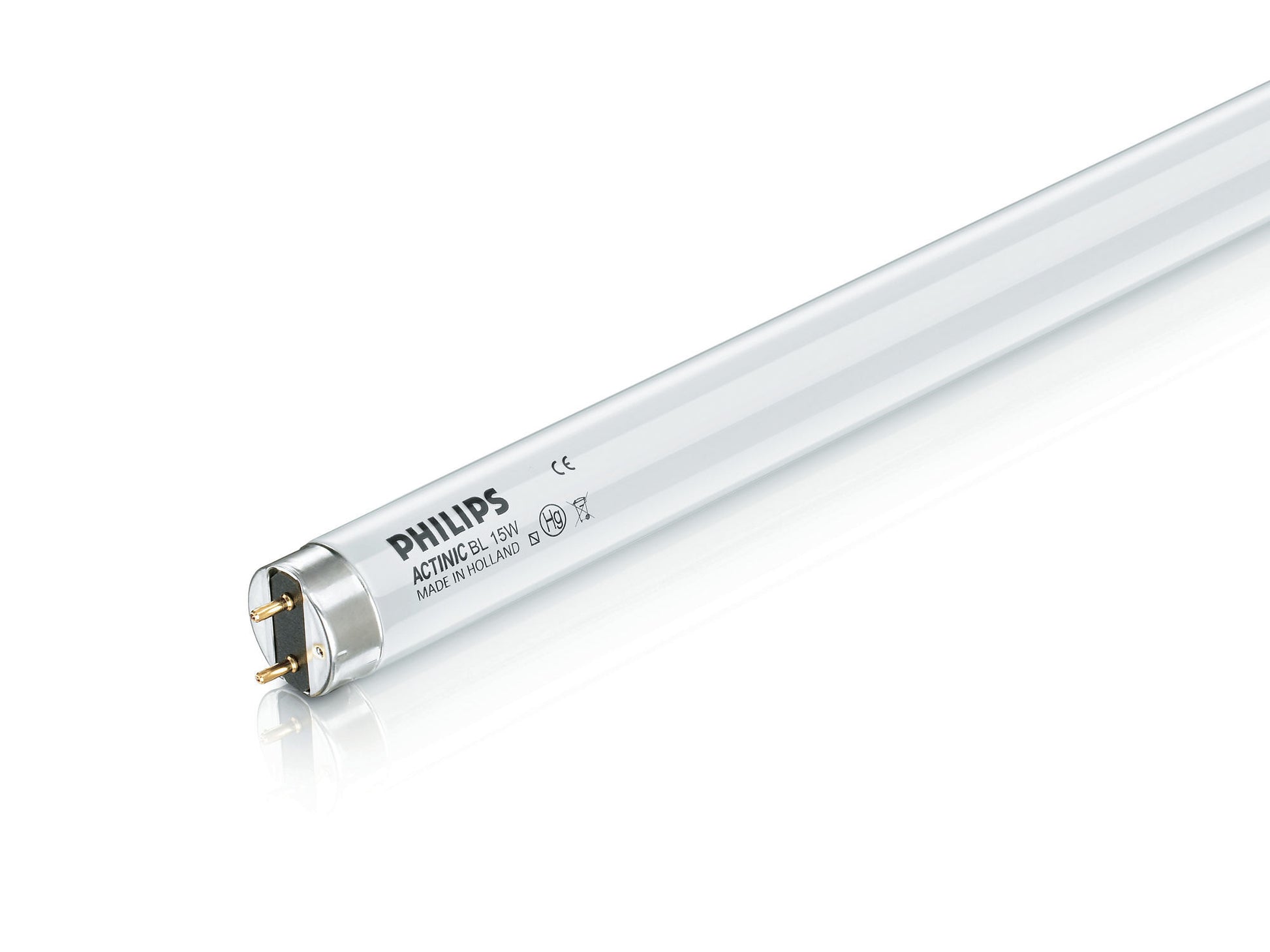

Philips Actinic BL TL-D 18W/10 1SL TLD 18W / TLD18W
With an optimized spectrum matching the eye sensitivity of the housefly, Actinic BL TL(-K)/TL-D(-K)/TL-E/PL-S and PL-L lamps are perfect for attracting insects. They have virtually no UV-B output, and so are perfectly safe. What's more, with the lowest mercury content in the industry and being 100% lead-free, these lamps represent a very good environmental choice. Furthermore, the availability of a wide range of form factors (straight (T5, T8, T12), circular (TL-E) and compact (PL-S/PL-L)) and wattages enables you to make all kinds of designs for your electronic fly killers.
Benefits
- Perfectly matches the eye sensitivity of houseflies and in this way attracts more insects
- Safe for use
- Design freedom
- Good environmental choice
Features

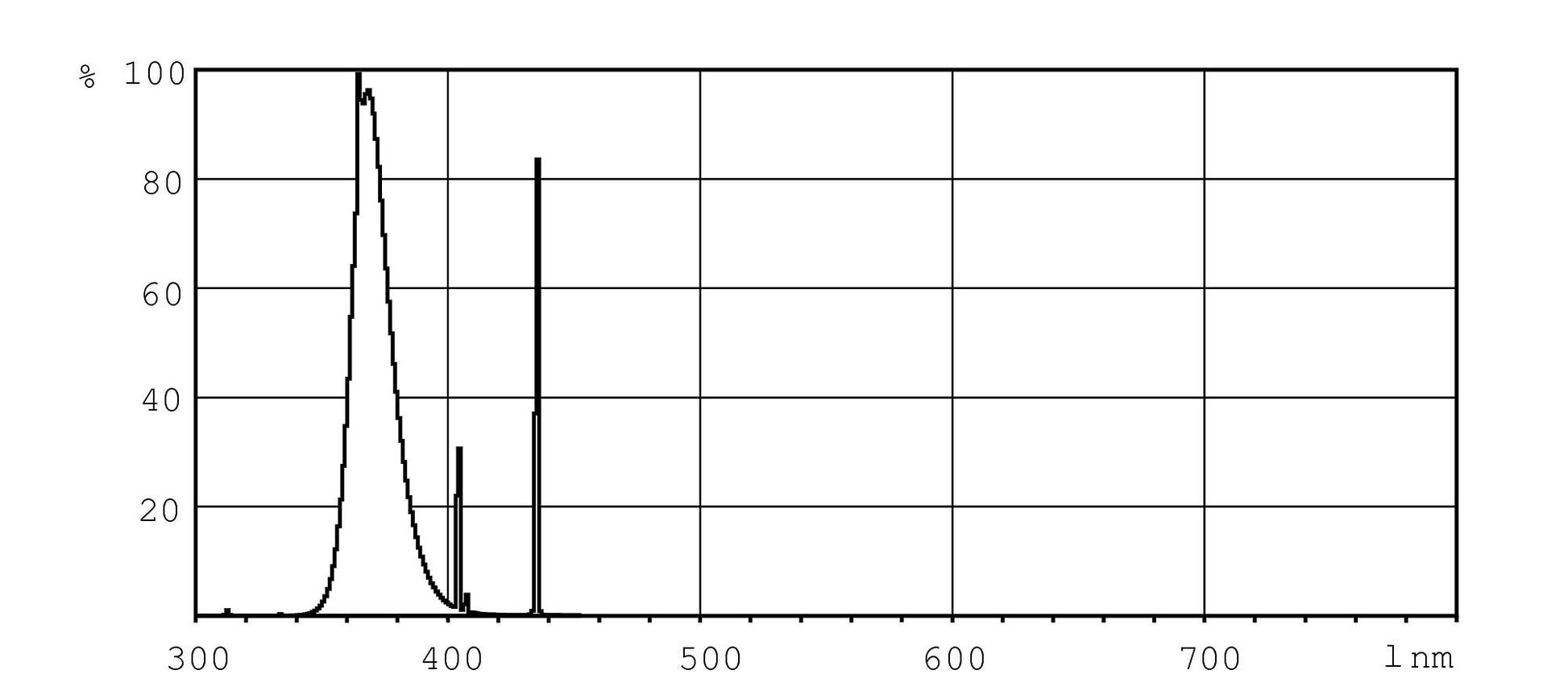

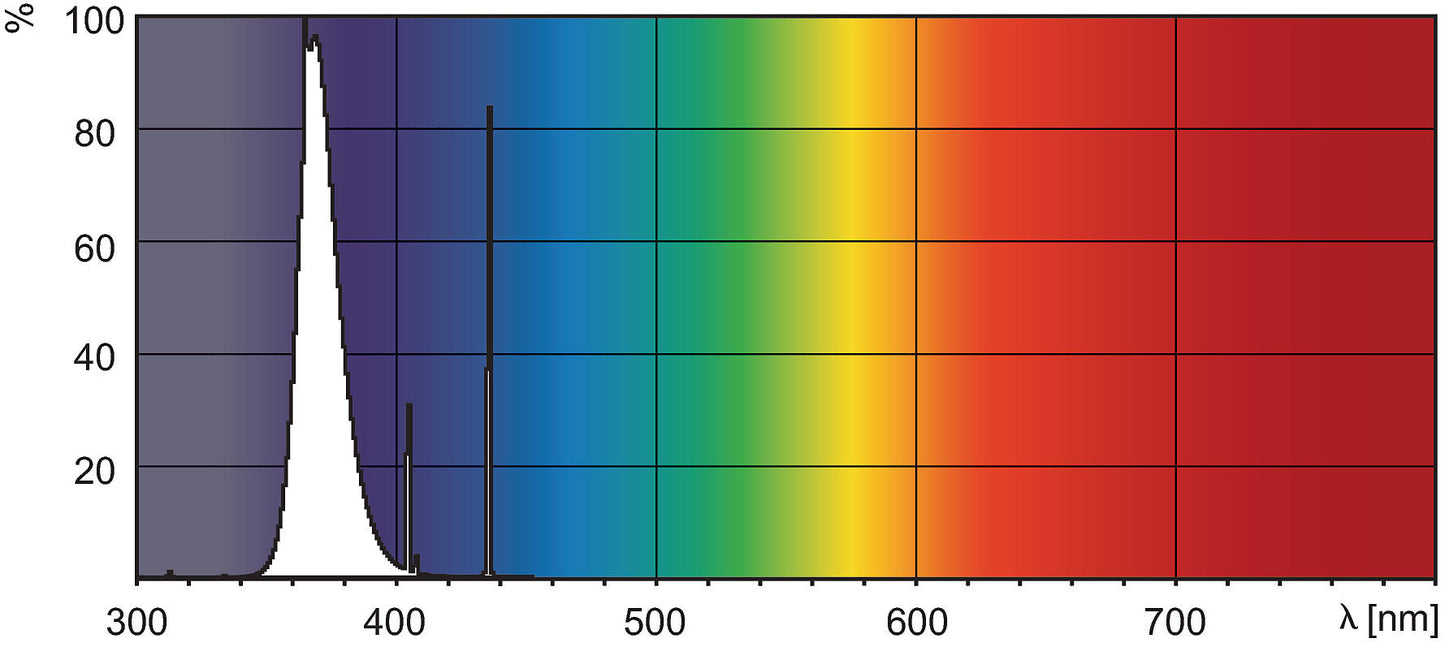

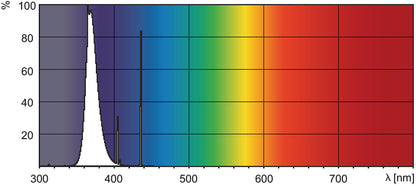

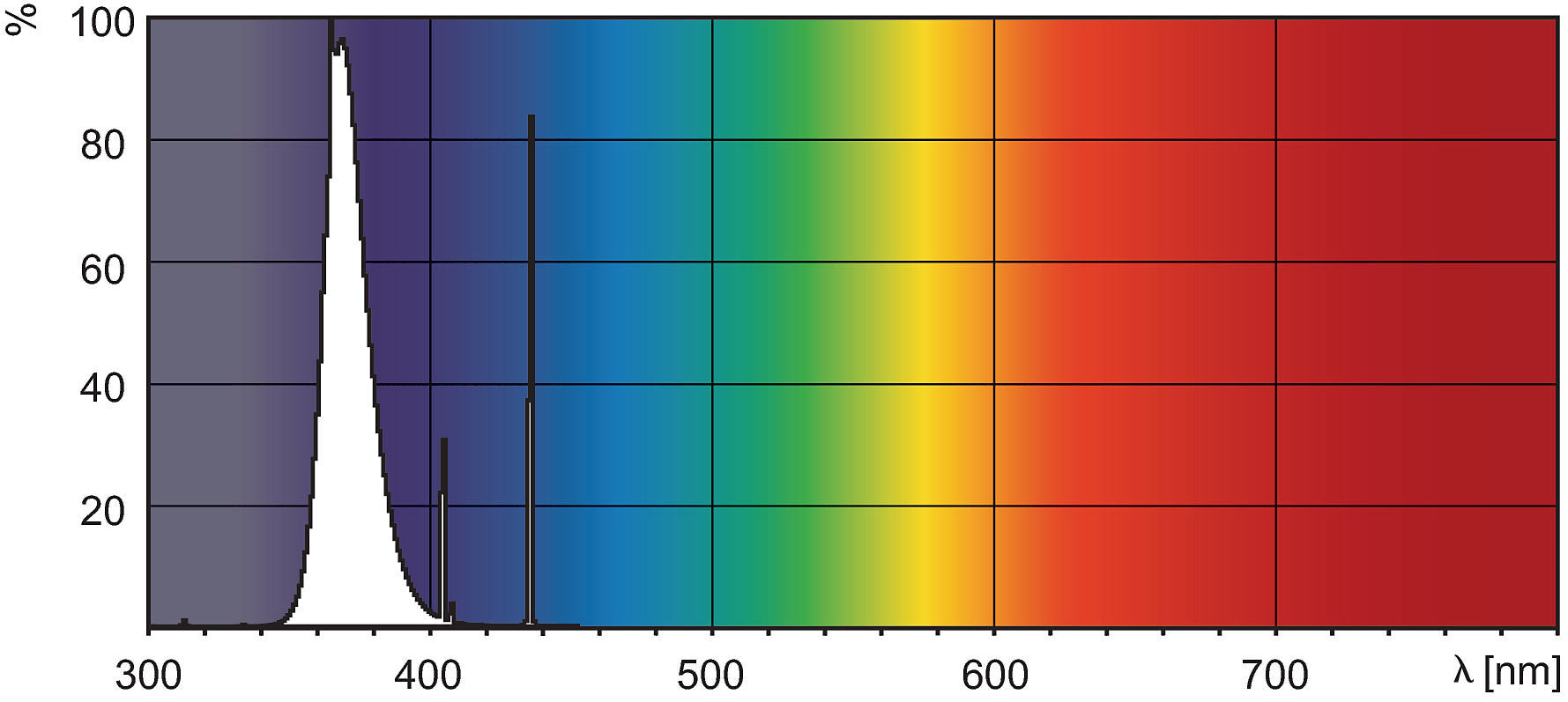

- Emits long-wave UV-A radiation in the 350-400nm range
- UV-B/UV-A ratio less than 0.1 % (UV-B 280-315nm)
- 100% lead-free
- Low mercury content
- Wide power range
Applications
- Insect traps, Electronic Fly Killers (EFKs), Example: Pest-O-Flash

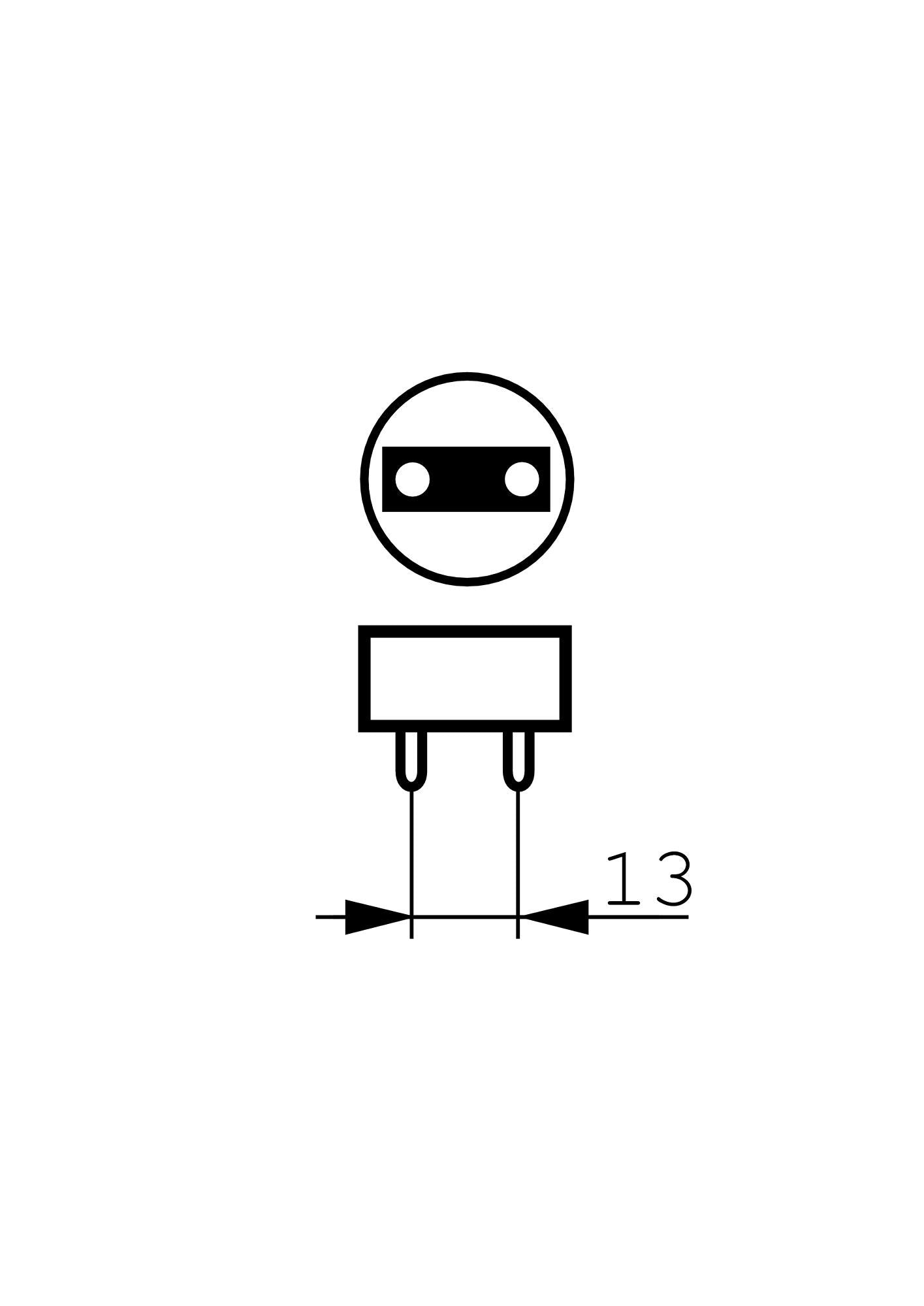

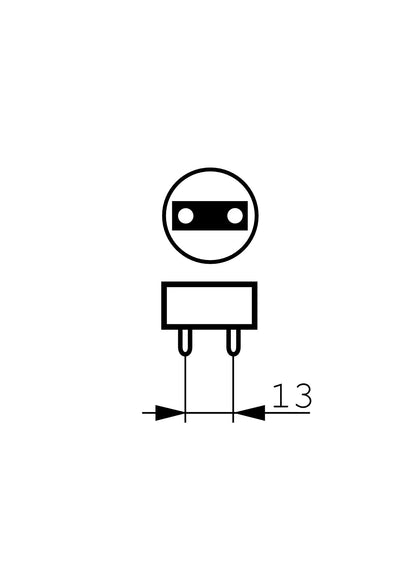

| Cap-Base | G13 |
| Bulb | T26 |
| Main Application | Reprography |
| Useful Life | 5000 hr |
| Life to 50% failures EM | 13000 hr |
| Color Code | 10 |
| Color Designation (text) | Actinic |
| Chromaticity Coordinate X | 222 - |
| Chromaticity Coordinate Y | 210 - |
| Depreciation 5000 hours | 20 % |
| Depreciation 2000 hours | 10 % |
| Lamp Wattage | 18 W |
| Lamp Wattage Technical | 18 W |
| Lamp Voltage | 59 V |
| Lamp Current | 0.36 A |
| Mercury (Hg) Content | 5.0 mg |
| UV-A Radiation 100hr (IEC) | 5.0 W |
| UV-B/UV-A (IEC) | 0.2 % |

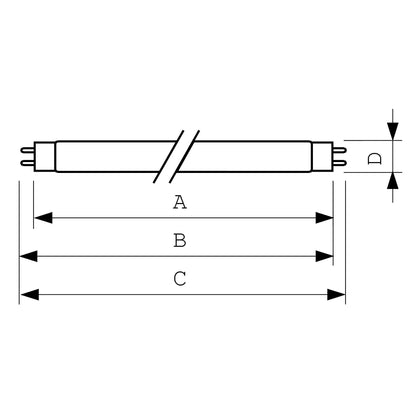

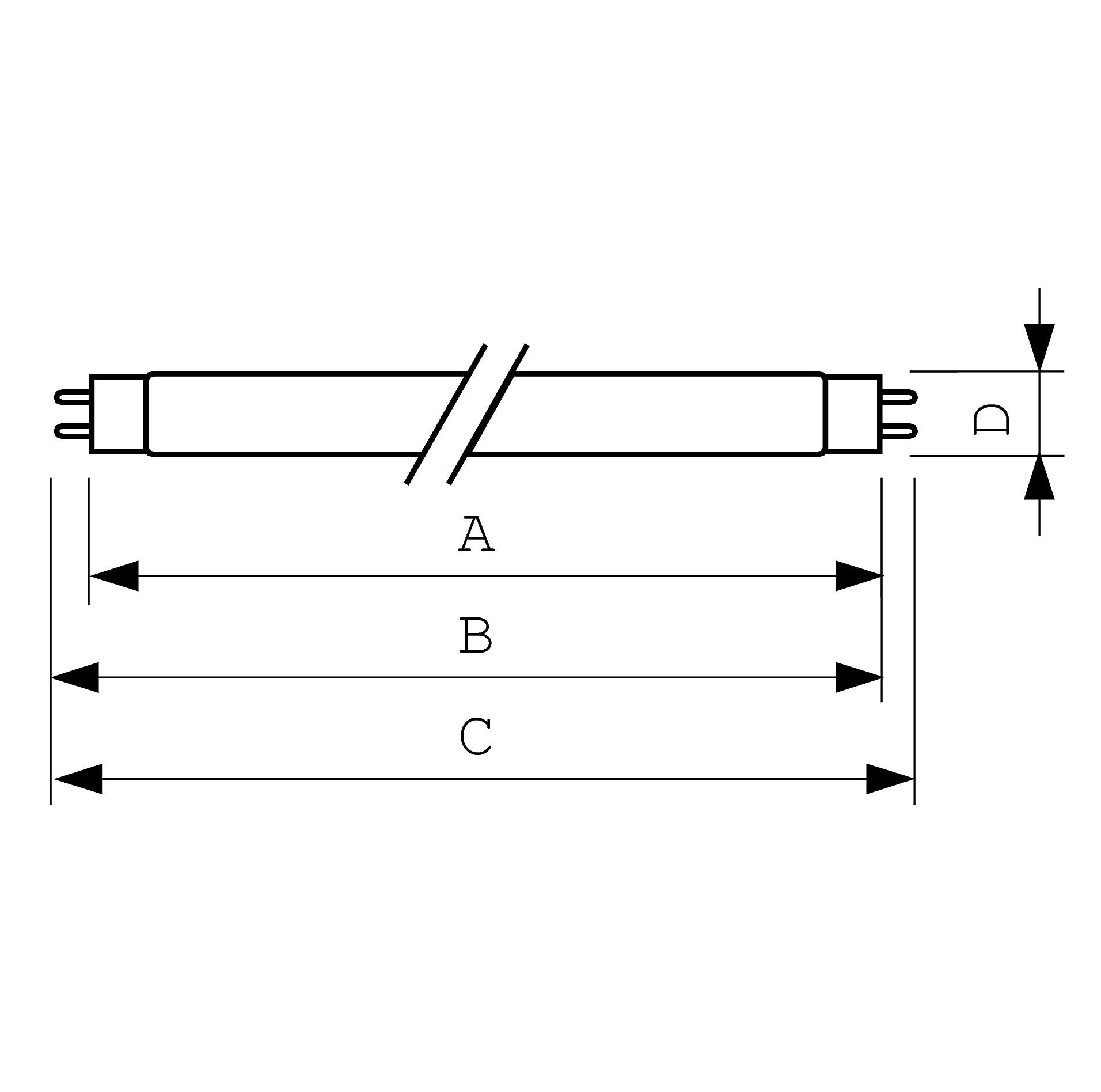

| Base Face to Base Face A | 589.8 (max) mm |
| Insertion Length B | 594.5 (min), 596.9 (max) mm |
| Overall Length C | 604 (max) mm |
| Diameter D | 28 (max) mm |
